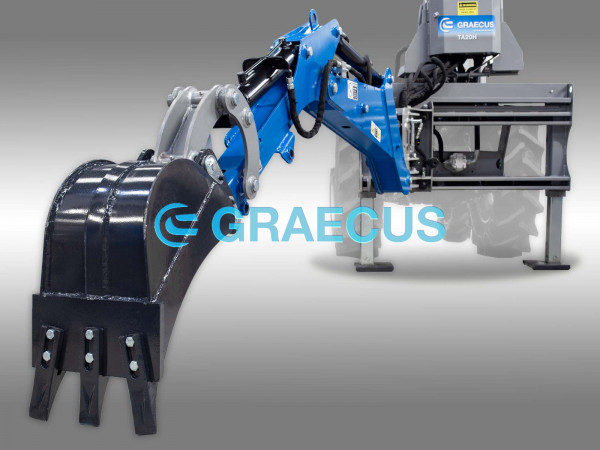

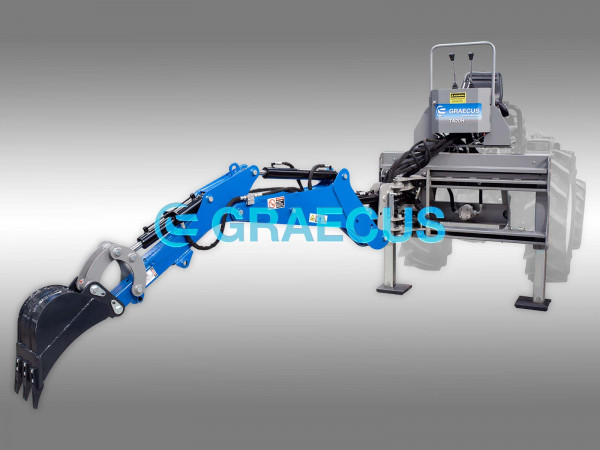

Backhoe for tractor
USAGE AND CHARACTERISTICS
- Independent hydraulic system with oil pump and oil tank.
- Control valve with joystick levers and controls in series.
- Mechanical boom lock for easy and safe transportation.
- Two safety legs, hydraulically independent for maximum stability.
- The main joints are made of high hardening steel.
- Seat with safety belts.
- Boom swivel radius 180 degrees.
- Opening angle of bucket up to 203 degrees.
- Reinforced at all stress points.
- The TA10 boom have mechanical move with lock almost 700 mm laterally.
- TA-H models have a 960 mm hydraulic arm displacement.
- Universal 3 points linkage cat. I-II(ø 19.0-22.0mm / 25.0-28.0mm).
- EC Conformity.
|Minimal tractor power:||30 HP|
